Tighten Bolts-Adjustable Front Axle

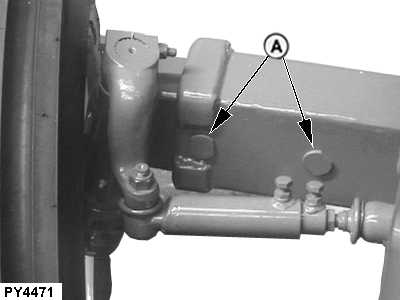

PY4471

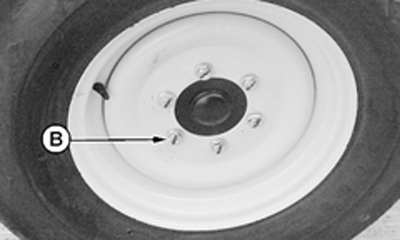

PY1487

2 WD

Tighten bolts in the following locations to specifications:

Specification

Adjustable Front Axle-Axle-to-Knee Bolts -Torque 480 N·m (350 lb-ft)
Adjustable Front Axle-Disk-to-Flange Bolts (2 WD) -Torque 210 N·m (130 lb-ft)
Adjustable Front Axle-Disk-to-Flange Bolts (MFWD) -Torque 310 N·m (130 lb-ft)


A-Axle-To-Knee
B-Disk-To-Flange

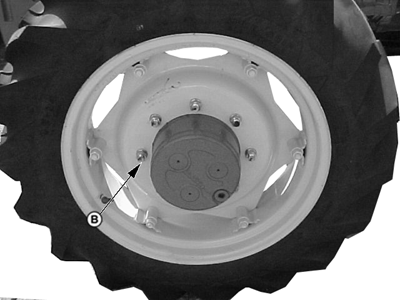

PY4370

MFWD

PY80265,0000133 -19-11JUL06-1/1
