Adjusting Ride Comfort

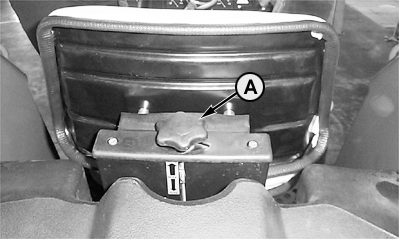

Adjustment knob is located behind seat.

Weight markings are given on the rear of seat.Turn adjustment knob (A) for a firm or soft ride. Seat suspension will function properly relative to operator's weight.

A-Adjustment knob

PY80265,05H0414 -19-05SEP05-1/1
