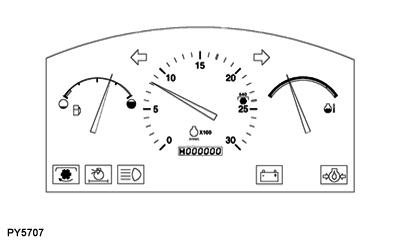

Observe Engine Work and Idle Speeds

Slow idle speed should be 825-875 RPM. At light or no load, full throttle speed will increase to 2600 RPM.

Normal working speed is 1600 RPM to 2400 RPM rated speed. Within these limits engine can be put under full load.

For correct PTO speed, run engine at 2400 RPM for standard 540 RPM operation .

PY80265,05H0431 -19-30MAY06-1/1
