Tread Settings-Adjustable Front Axle
|
Front rims are offset. With some tires, this provides two tread spacings, at each axle setting.
|
|
TREAD SETTINGS
Centerline-to-Centerline |
| Tire Size |
6.50-16 and 7.50-16 |
| Wheel Position |
C |
D |
C |
D |

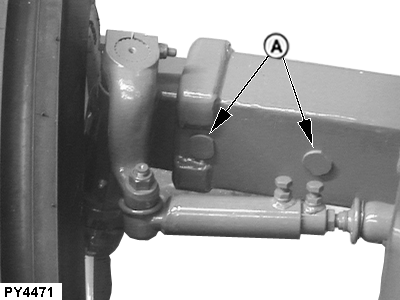

| Axle Pin Position |
A |
A |
B |
B |
| Tread Positiona |
|
|
|
|
| 1 |
1435 mm (56.5 in.) |
1568 mm (61.7 in.) |
|
|
| 2 |
|
|
1485 mm (58.5 in.) |
1618 mm (63.7 in.) |
| 3 |
1535 mm (60.4 in.) |
1668 mm (65.7 in.) |
|
|
| 4 |
|
|
1585 mm (62.4 in.) |
1717 mm (67.6 in.) |
| 5 |
1635 mm (64.4 in.) |
1768 mm (69.6 in.) |
|
|
| 6 |
|
|
1685 mm (66.3 in.) |
1818 mm (71.6 in.) |
| 7 |
1735 mm (68.3 in.) |
1868 mm (73.5 in.) |
|
|
| 8 |
|
|
1785 mm (70.3 in.) |
1918 mm (75.5 in.) |
| 9 |
1835 mm (72.2 in.) |
1968 mm (77.5 in.) |
|
|
| 10 |
|
|
1885 mm (74.2 in.) |
2018 mm (79.4 in.) |
| 11 |
1935 mm (76.2 in.) |
2068 mm (81.4 in.) |
|
|
| aNumber 1 position is with axle adjustment at its most inward location. See Adjust Front Axle Tread Width in this section. |
|
|
PU00210,00001C9 -19-16JUN06-1/1
|
|
