Using Turn Signals

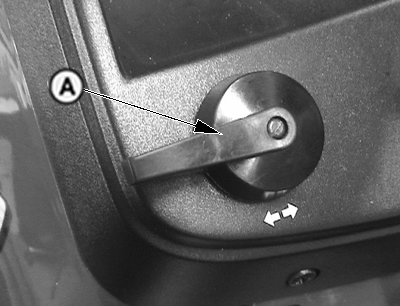

A-Turn Signal Lever

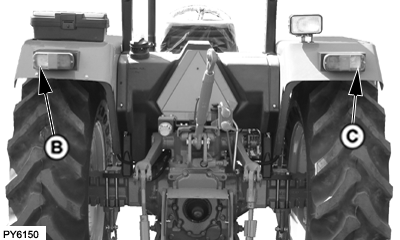

B-Left-hand Lights
C-Right-hand Lights

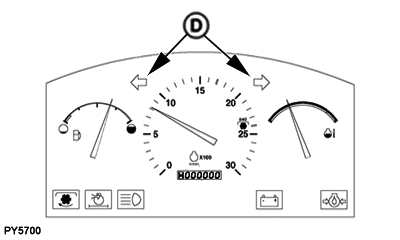

D-Dash Indicator Lights

Move turn signal lever (A) down to indicate left-hand turn or up for right-hand turn. Indicator lights (D) will flash to signal turn direction.

When lever is up, front and rear turn lights on right-hand side (C) will flash. When lever is down, front and rear turn lights on left-hand side (B) will flash.

NOTE: Be sure to manually return lever to center position after turning.

PU00210,0000240 -19-21AUG06-1/1
