Driving on Public Roads

causym CAUTION: When transporting on a public road or highway, use accessory lights and devices for adequate warning to operators of other vehicles. Check local governmental regulations. Various safety devices are available from you John Deere dealer. Keep safety items in good condition. Replace missing or damaged items.

Observe the following precautions when operating the tractor on the road:

causym CAUTION: Before operating tractor on a road, lock brake pedals together. Use brake lightly and cautiously at transport speeds.

1. Couple brake pedals together using brake locking bar (A). Avoid hard applications of brakes. Reduce speed if towed load weighs more than the tractor and is not equipped with brakes.

Use additional caution when transporting towed loads under adverse surface conditions and when turning or braking on inclines. Be sure wheel tread is adjusted wide to provide maximum stability.

IMPORTANT: To prevent unnecessary wear, never ride the brakes by resting a foot on the pedals.

PY4348


A-Brake Locking Bar

PU00210,000024C -19-21AUG06-1/2

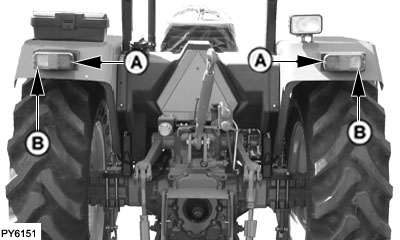

PY6151

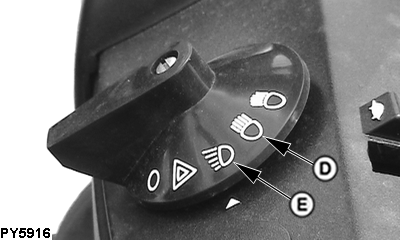

PY5916


A-Tail Lights
B-Turn Signal Lights
C-Reflex Reflector
D-Bright Headlight Switch Position
E-Dim Headlight Switch Position
F-Turn Signal Switch

2. Check local laws and regulations for lighting requirements. Be sure turn signal lights (B) and tail lights (A) are clean and visible.

3. Turn light switch to position (D).

Always turn light switch to dim lights position (E) when meeting another vehicle. Never use flood lamps or any other lights which could blind or confuse other drivers.

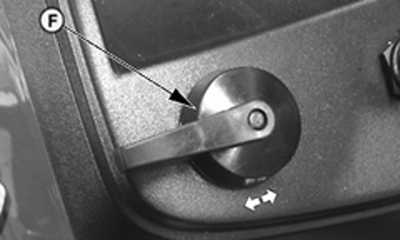

4. Use turn signal when turning. Be sure to return lever (F) to center position after turning.

5. Drive slowly enough to maintain safe control at all times. Before descending a hill, shift to a gear low enough to control speed without using brakes. Slow down for rough ground, and sharp turns, especially when transporting heavy, rear mounted equipment.

PY4469

PU00210,000024C -19-21AUG06-2/2
