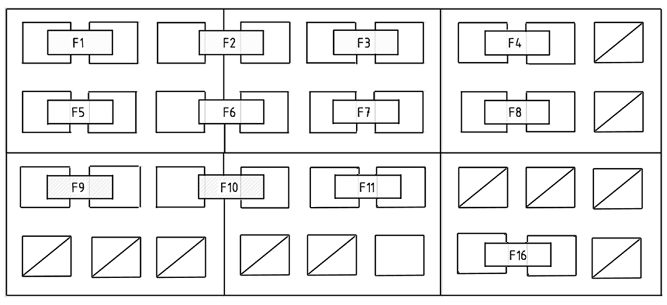

F1-30 amp-Key Switch Starting Circuit
F2-30 amp-Horn Light Brake Lamp
F3-30 amp-7 Pin Outlet Connector, Rocker Switch
|
F4-20 amp-High Beam Head Lights
F5-20 amp-Flasher
F6-20 amp-Flood Lights
F7-20 amp-Tail Lights
|
F8-20 amp-Low Beam Head Lights
F9-10 amp-White Lamp
F10-10 amp-Alternator, Instruments & Engine Related Warning Indicators
|
F11 › F16-Spare
|
