Replace Tail Light and Warning Light Bulbs

1. Remove screws (A).

2. Remove lens.

3. Push and twist to release bulb from socket.

4. Reverse this procedure to reassemble light.

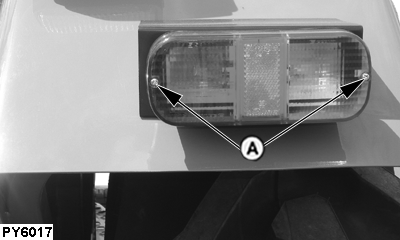

A- Cap Screws (2 used)

PY6017

PU00210,00002BF -19-27JUL06-1/1
