Lubricate Swivel Housing and Axle Housing (MFWD)

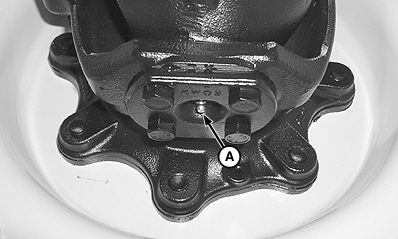

LV8955

Lower Swivel Housing Zerk

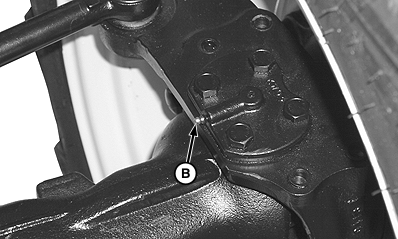

LV8954

Upper Swivel Housing Zerk

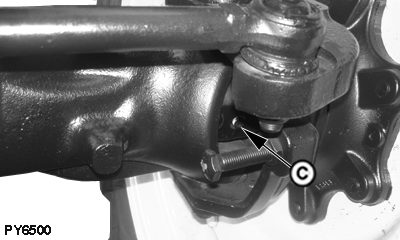

PY6500

Double Cardan U-Joint Greasing Point (Paddy Sealed Axle)

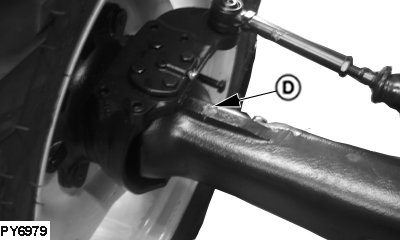

PY6979

Axle Housing Greasing Zerk (Paddy Sealed Axle)


A-Lower Greasing Zerk


B-Upper Greasing Zerk


C-U-Joint Greasing Point


D-Axle Housing Greasing Zerk

* Daily or Every 10 Hours if operated in extremely wet conditions

Lubricate swivel housing zerks (A and B) as well as axle housing and u-joint (C and D) with several shots

of multipurpose grease. (See Fuels Lubricants and Coolant Section.)

PU00210,0000973 -19-13APR07-1/1
