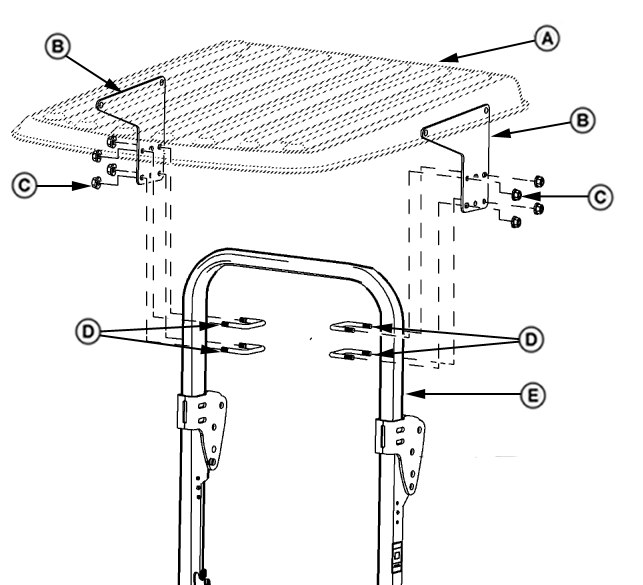

A-Canopy
B-Canopy Mounting Bracket (2 used)

C-Nut (8 used)

D-U-Bolt (4 used)

E-ROPS Crossbar

CAUTION: Make certain all parts are installed correctly if canopy is loosened or removed for any reason. Tighten mounting bolts to proper torque.

The protection offered by canopy will be impaired if canopy is subjected to structural damage, as in an overturn incident, or is in anyway altered by welding, bending, drilling, or cutting. A damaged canopy should be replaced, not reused. Any alteration to the canopy must be approved by the manufacturer.

When installation of equipment on a machine necessitates loosening or removing canopy (A), mounting U-bolt (D) and nut (C) should be tightened to specification.

Specification

Inspect canopy mounting hardware every 250 hours for proper torque or replacement.
