Stopping the Engine

1. Pull hand throttle (A) down to slow idle position. Allow engine to idle for one to two minutes.

2. Put range shift lever in Park position.

IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

3. Turn key switch to the OFF position.

4. Pull manual fuel shut-off knob (B) (at lower left side of control support) rearward and hold until engine has completely stopped.

causym CAUTION: Remove key from key switch to prevent operation by untrained personnel.

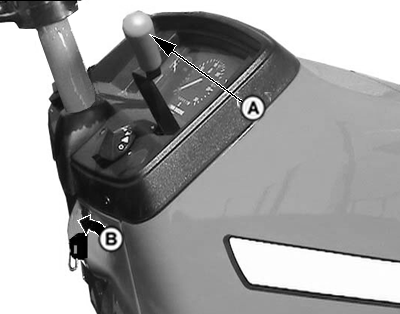

A-Hand Throttle
B-Key Switch Off Position

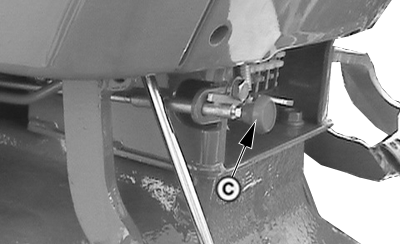

C-Fuel Shut-Off Knob

PY4501
PY4886

PY80265,05G1231 -19-10JUL06-1/1
