Using Flood Lamp

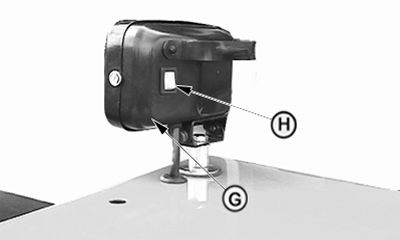

Flood lamp (G) is switched on by "Flood Light Switch (H)" switch. Horn (F) is located just right side of light switch
 CAUTION:
When operating on a road, move light switch to either "Bright or Dim Head Lamp" positions Never use flood lamp when transporting. A clear, bright light at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.

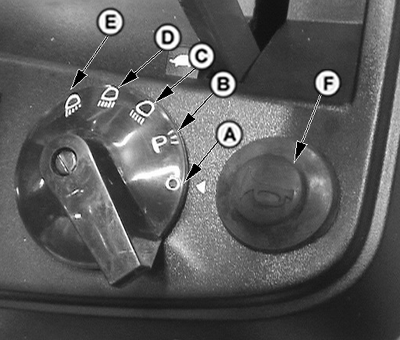

A-Lights Off
B-Warning Lights Position
C-Dim Headlights, Tail Lights and Warning Light Position
D-Bright Headlights, Tail Lights and Warning Lights Position
E-High Beam Light
F-Horn
G-Flood Lamp
H-Flood Light switch
|
