Shifting Transmission

IMPORTANT: To prevent transmission damage, do not use speed shift on-the-go. To prevent unnecessary wear, never "ride" the clutch by resting a foot on the pedal.

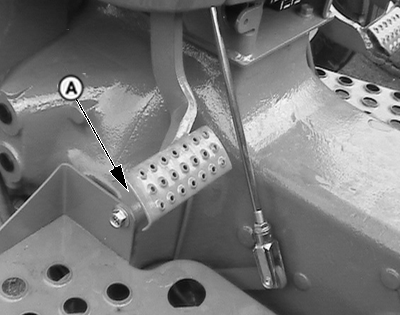

Depress clutch pedal (A) and stop tractor before shifting either range shift lever or gear shift lever. Release clutch pedal gradually to take up load smoothly.

A-Clutch Pedal

PY80265,05H0839 -19-06SEP05-1/1
