Lubricate Rear Axle Bearings

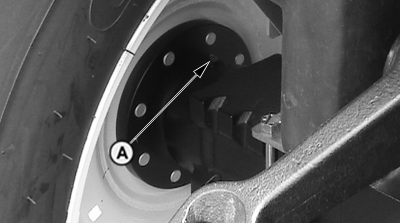

Lubricate rear axle fittings (A), both sides, with several shots of multi-purpose grease. (See Fuels, Lubricants and Coolant section.)


A-Rear Axle Fittings

PY4025

PY80265,05H0957 -19-06SEP05-1/1
