Opening Hood

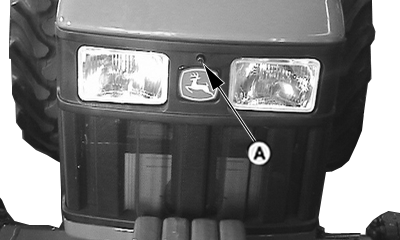

1. Push hood latch release (A) in to unlock hood.

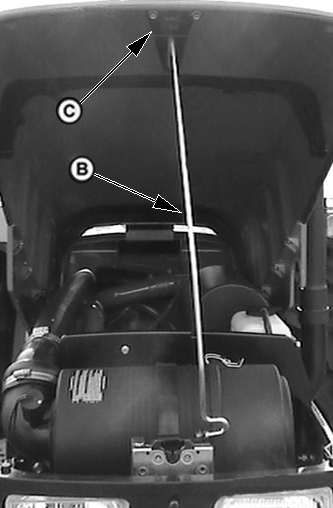

2. Raise hood and lift the support rod (B).

3. Insert the hood support rod into the hood latch striker slot (C) to hold hood in raised position.


A-Hood Latch Release
B-Hood Support Rod
C-Hood Latch Striker

PY5508
PY4514

PY80265,05H0974 -19-06SEP05-1/1
