Changing Transmission-Hydraulic Oil and Filter

1. Lower rockshaft to remove trapped oil.

2. Remove drain plug(s).

  • MFWD Axle-Remove drain plugs (B and C)

Drain oil into pan and dispose of waste oil properly.

3. Replace filter (A) while changing oil. (See Replacing Transmission-Hydraulic Filter in Section 30.)

4. Fill system with transmission-hydraulic oil. (See Checking Transmission-Hydraulic System Oil Level Section 25.)

Specification

12/12 PowrReverser™ Transmission -Capacity 42.5 L (11.5 gal)

5. Check oil level at sight glass (D) after filling, and again after operating for five minutes.

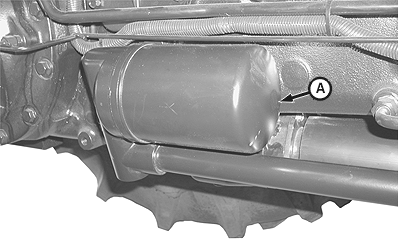

A-Filter
B-MFWD Drain Plug

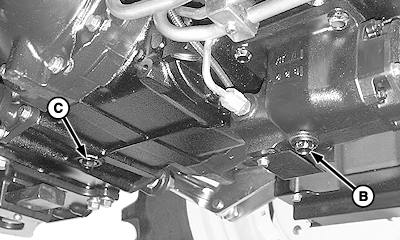

C-Transmission Case Drain Plug
D-Sight Glass

LV4980
LV9622
LV12927
