Engine Cooling System Components

IMPORTANT: Never pour cold water into the cooling system of a hot engine, as it might crack cylinder block or head. DO NOT operate engine without coolant for even a few minutes.

The tractors utilize a remote coolant recovery tank. Make-up coolant is added to the coolant recovery tank rather than directly to the radiator.

A-Radiator Cap
B-Radiator
C-Coolant Recovery Tank
D-Upper Radiator Hose
E-Thermostat Housing

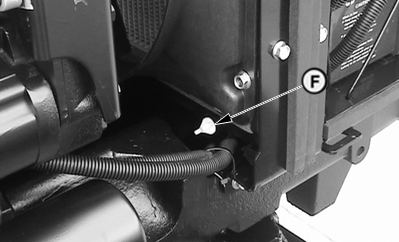

F-Radiator Drain
