Light Switch Positions

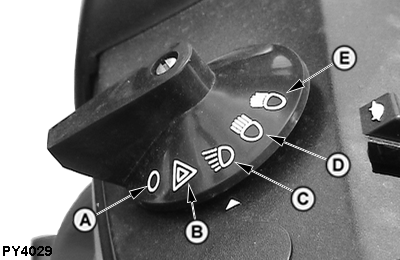

Tractor light switch has five positions:

PY4029


A-Lights Off
B-Warning Lights Position
C-Work Light
D-Full-Beam Headlights, Tail Lights and Warning Lights Position
E-Low-Beam Headlights, Tail Lights and Warning Lights Position

Switch Position Warning Lights Taillights Work Light Headlights
A-Off Off Off Off Off
B-Warning On Flashing Off Off Off
C-Work Light Off Off On On-High Beams
D-High Beam On Flashing On Steady Off On-High Beams
E-Low Beam On Flashing On Steady Off On-Low Beams



MK41968,0000167 -19-17MAY07-1/1
