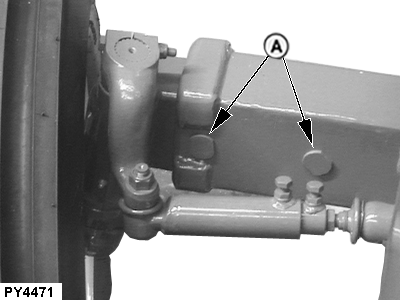

Tread Settings-Adjustable Front Axle
|
|
|
Front rims are offset. With some tires, this provides two tread spacings, at each axle setting. |

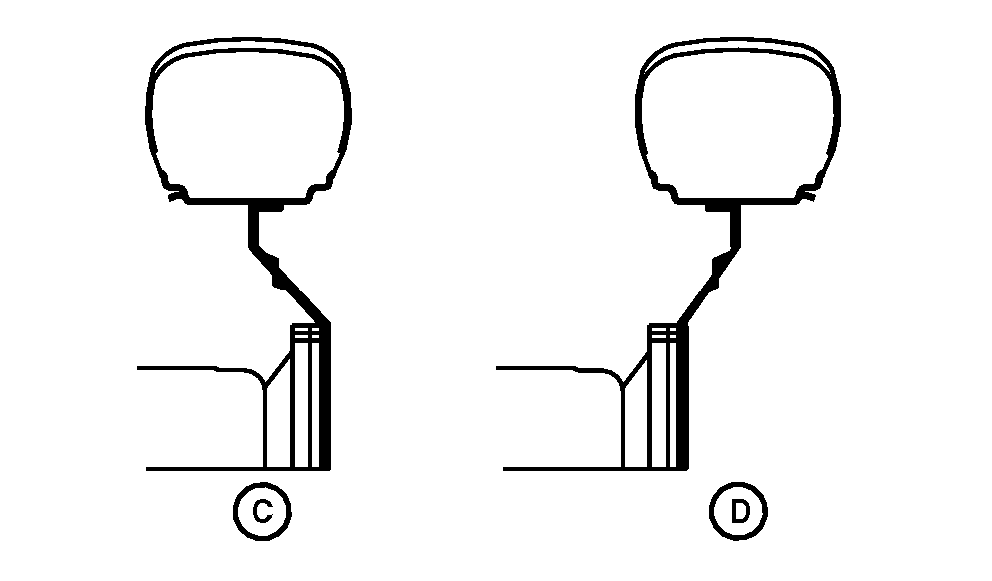

| ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram C Centerline-to-centerline |
||||||
|---|---|---|---|---|---|---|
| Tread Position&crossa; | ||||||
| Tire | 1 | 2 | 3 | 4 | 5 | 6 |
| 7.5-16 | 1449 mm (57.0 in.) |
1549 (61.0 in.) |
1649 (64.9 in.) |
1749 (68.9 in) |
1849 (72.8 in.) |
1949 (76.7 in.) |
| &crossa;Tread position 1 is with axle adjustment at its most inward location. See adjust Front Axle Tread Width in this section. | ||||||
| ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram D Centerline-to-centerline |
||||||
|---|---|---|---|---|---|---|
| Tread Position&crossa; | ||||||
| Tire | 1 | 2 | 3 | 4 | 5 | 6 |
| 7.5-16 | 1583 (62.3 in.) |
1683 mm (66.3 in.) |
1783 mm (70.2 in.) |
1883 mm (74.1 in.) |
1983 mm (78.1 in.) |
2083 mm (82.0 in.) |
| &crossa;Tread position 1 is with axle adjustment at its most inward location. See adjust Front Axle Tread Width in this section. | ||||||
