Before Starting the Engine
TS220

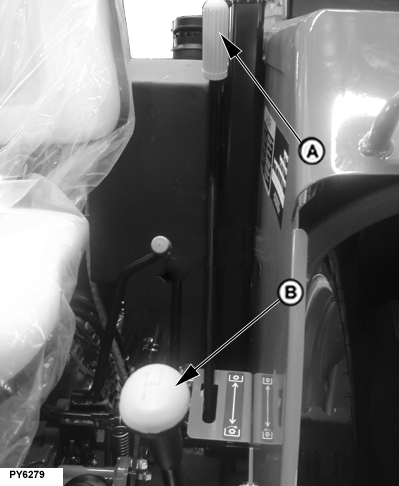

PY6279


A-PTO Lever
B-Range Shift Lever
C-Rockshaft Draft Control Lever
D-Rockshaft Position Control Lever

causym CAUTION: Prevent asphyxiation. Engine exhaust fumes can cause sickness or death to you or someone else.

If you must operate engine in a building, be positive there is adequate ventilation. Either use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to bring enough outside air into the area.

1. Check fuel gauge to be sure tractor has plenty of fuel.

2. Place range shift lever (B) in "NEUTRAL" (N) and PTO lever (A) in "OFF" position. Starter will not operate if range shift lever and PTO lever are not in these positions.

3. Place rockshaft control levers (C and D) in lowered position.

4. Check indicator lights. Indicators should illuminate when key switch is turned to the "ON" position.

If any indicator does not function properly, see your John Deere dealer.

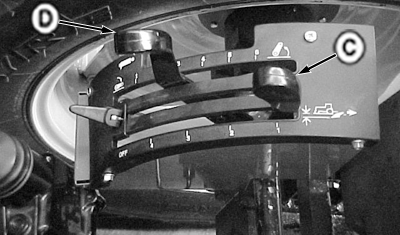

PY1238

NR25796,00003B6 -19-10OCT06-1/1
