Selecting Seat Position

There are two seat adjustments available:

Move lever (B) and slide seat closer to or away from dash panel and controls.

To raise or lower seat: Use a wrench to adjust cap screws (A) to desired seat height.

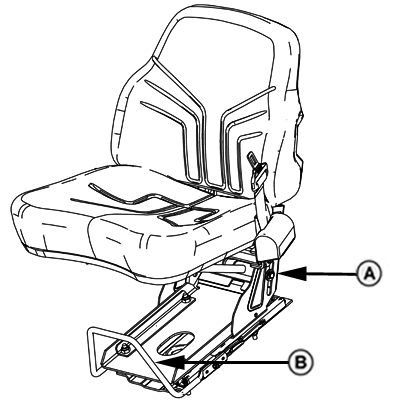

A-Seat Adjustment Cap Screws-Lower or Raise
B-Seat Adjustment Lever-Fore or aft

NR25796,00004A4 -19-08NOV06-1/1
