OMRE268160: 5103, 5203, 5303 and 5403 Tractors, Block File: NR25796_0000532_19

1. Drain transmission-hydraulic oil. (See Change Transmission-Hydraulic Oil and Filter in this section.)

NOTE: The approximate transmission case oil capacity is 38 L (10 gal).

2. Remove two cap screws (A) and remove screen cover (B).

3. Remove screen and examine it for damage. Replace if necessary. Clean screen in solvent and blow dry with compressed air.

4. Carefully install screen so the front of screen is inserted in hole at front of differential case.

5. Fill system with transmission-hydraulic oil. (See Changing Transmission-Hydraulic Oil and Filter in this section.)

A-Cap Screws
B-Screen Cover

NR25796,0000532 -19-26JUL07-1/2

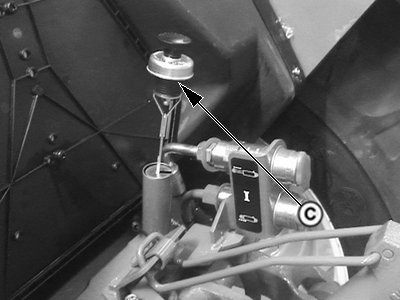

6. Check oil level at dipstick (C) after filling, and again after operating for five minutes.

C-Transmission-Hydraulic Oil Dipstick

NR25796,0000532 -19-26JUL07-2/2
