Change Transmission-Hydraulic Oil and Filter

PY6278

Transmission Drain Plug

PY6277

Drop Housing Drain Plug

PY6542
PY4434

Dipstick


A-Transmission Case Drain Plug


B-MFWD Drop Housing Drain Plug


C-Oil Filter


D-Dipstick

1. Lower rockshaft to remove trapped oil.

NOTE: The approximate transmission case oil capacity is 38 L (10 gal)

2. Remove drain plug (A) from transmission case and drain out oil. Dispose of waste oil properly.

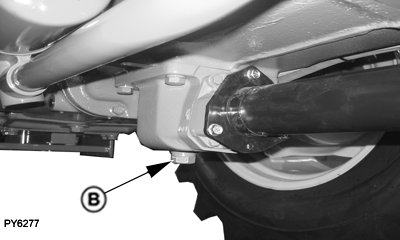

3. If equipped with MFWD axle, also remove drain plug (B) in drop housing.

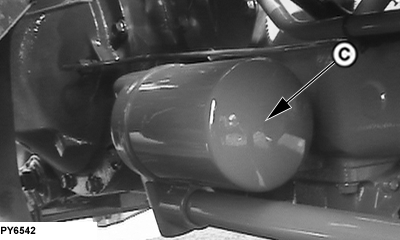

4. Replace filter (B) while changing oil. Apply a film of oil to new filter gasket and install new filter. Hand tighten only.

5. Fill system with transmission-hydraulic oil. (See Fuels, Lubricants and Coolant section.)

Specification

Transmission Oil -Capacity 38 L (10 gal)

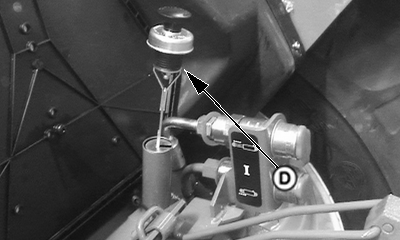

6. Check oil level at dipstick (D) after filling, and again after operating for five minutes.
