Adjusting Cylinder Stop

Working stroke of remote cylinder is adjustable. Cylinder retracts only until it contacts movable stop, then stops automatically.

2. Slide adjustable stop (B) to desired position.

3. Push lever down firmly. Be sure lever will not contact stop rod arm (C).

IMPORTANT: Be sure stop clamps securely on rod. If it does not, lift lever and rotate it clockwise, then push it down firmly.

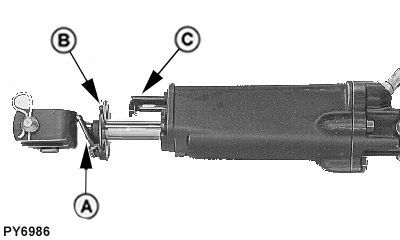

A-Lever
B-Adjustable Stop
C-Stop Rod Arm
