Lubricate Front Axle Pivot Pin(s)

Right Side of MFWD Axle

Rear Side of MFWD Axle

Right Side of 2WD Axle

Rear Side of Under Front Support

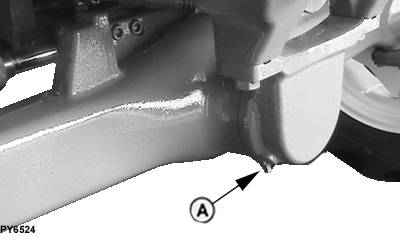

A-MFWD Front Pivot Zerk

B-MFWD Rear Pivot Zerk

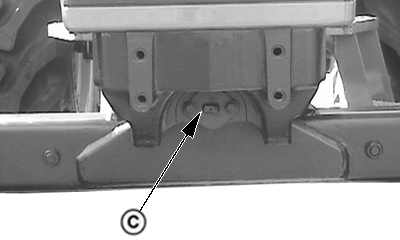

C-2WD Axle Pivot Pin

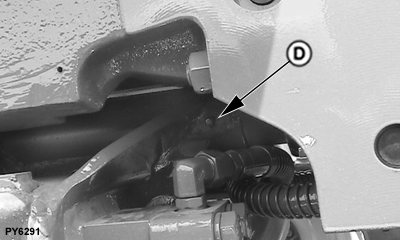

D-2WD Rear Pivot Zerk

Lubricate MFWD front pivot (A) and rear pivot (B) with several shots of multipurpose grease. Adjustable axle pivot pin (C) also requires lubrication of the front and

rear pivot bushing zerks with multipurpose grease. (See Fuels, Lubricants and Coolant section).

PU00210,0000BD0 -19-15OCT07-1/1
