Daily Service Before Starting Engine

NOTE: Park tractor on level ground before executing checks.

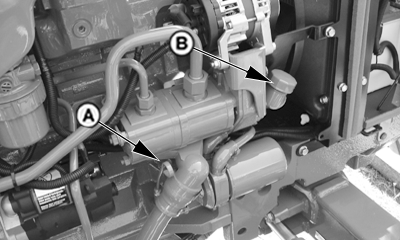

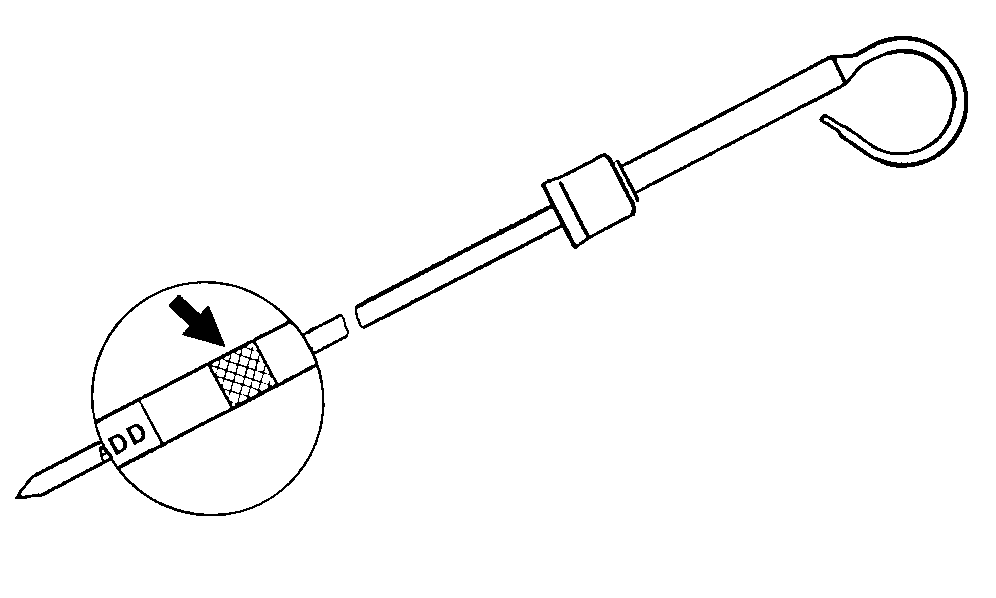

1. Check engine oil level. Clean dipstick (A) and reinsert fully. Withdraw it again and check oil level. The window for safe operation of engine is when the oil level is between the upper and lower marks of the dipstick.

Do not operate the engine if oil level is below minimum mark. In this case, add recommended oil. (See "Fuels, Lubricants, Coolant" section)

PY5507
PY6494

SA61034,0000056 -19-22NOV07-1/4

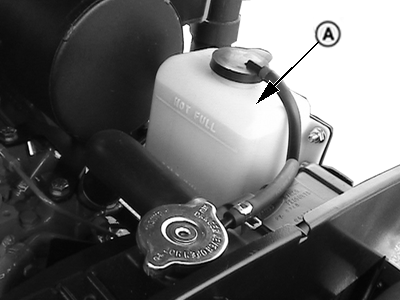

2. Check coolant level of radiator expansion tank (A). If the engine is cold and coolant level is below LOW, add coolant to expansion tank until level reaches LOW mark.

NOTE: With engine cold, coolant level should be at LOW mark. At operating temperature coolant level of a tractor should be at FULL mark.

3. Lubricate the following points every 10 hours if operating the tractor in extremely wet or excessively muddy conditions.

-Front axle pivot pin.

-Steering transmission axle.

-Ends of coupling bar.

4. Check hydraulic oil level of transmission. Withdraw dipstick and clean it. Insert dipstick fully. Oil level should be between the marks on the dipstick. If level is low add oil.

PY4482

SA61034,0000056 -19-22NOV07-2/4

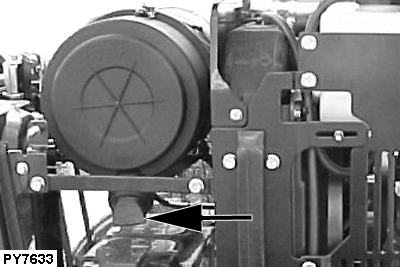

IMPORTANT: Never run the engine when the dust unloading valve is removed!

5. Remove deposits by squeezing the valve.

During harvesting, grass and chaff may adversely affect the performance of the dust unloading valve. Remove and clean the dust unloading valve as necessary. Replace damaged valve immediately.

PY7633

SA61034,0000056 -19-22NOV07-3/4

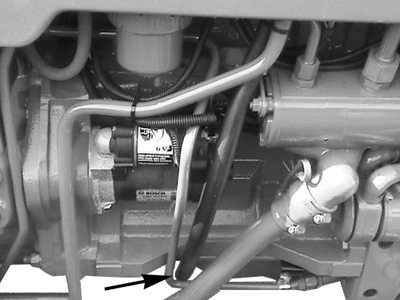

6. Make sure the hose of the rocker arm cover ventilation is not pinched.

Remove any dirt from the hose end.

PY7039

SA61034,0000056 -19-22NOV07-4/4
