Using Differential Lock

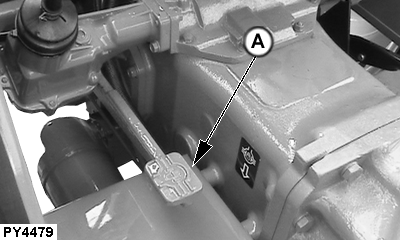

IMPORTANT: To prevent damage to drive train, DO NOT engage differential lock when one wheel is spinning and the other is completely stopped by the rspective brake. When one wheel starts to lose traction, engage differential lock by depressing pedal (A) down. Keep the pedal pressed till the traction at both the tyres equalizes and tractor comes out of the ditch. If lock does not disengage, depress one brake pedal and then the other. If tyres repeatedly slip, then get to traction, then slip again, hold pedal in the engaged position. |
|
CAUTION:
DO NOT operate tractor at high speed or attempt to turn with differential lock engaged.
SA61034,000005D -19-22NOV07-1/1 |
