Stopping Tractor

causym CAUTION: Always place the gear shift lever in "PARK" before dismounting. Leaving transmission in gear with engine "OFF" MAY NOT prevent tractor from moving.

IMPORTANT: Tractor must be stopped before placing gear shift lever in "PARK". Park pawl will not engage, and the transmission may be damaged if tractor is moving.

1. Stop the tractor and place gear shift lever (A) in "PARK" position.

2. Lower all equipment to ground using rockshaft position control lever (C and D).

3. Pull hand throttle (B) down to slow idle position. Allow engine to idle for one to two minutes.

IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

causym CAUTION: Remove the key from key switch to prevent operation by untrained personnel.

4. Turn key switch to "OFF" position.

PY7078

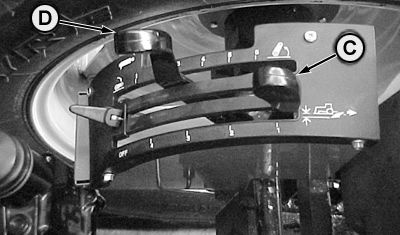

PY1469


A-Gear Shift Lever
B-Hand Throttle
C-Rockshaft Draft Control Lever
D-Rockshaft Position Control Lever

SA61034,000005F -19-22NOV07-1/1
