Control Lever and Coupler Identification

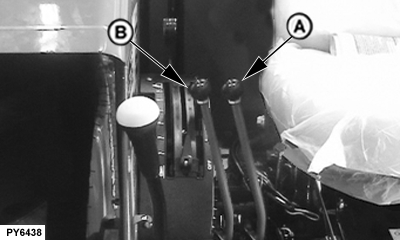

Movement of SCV I lever (A) fore and aft operates coupler (No. 1) receptacles (C).

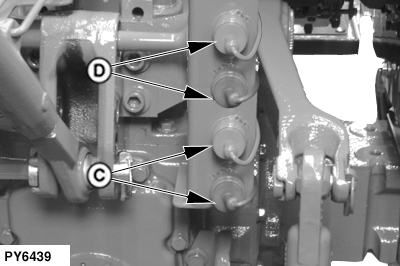

Movement of SCV II lever (B) fore and aft operates coupler (No. 2) receptacles (D).

Coupler I has a detented float position when lever (A) is moved in the fully forward direction.

Coupler II has a regenerative position when lever (B) is moved in the fully forward direction.

A-SCV I Lever
B-SCV II Lever
C-SCV I Receptacles
D-SCV II Receptacles

SA61034,0000060 -19-22NOV07-1/2

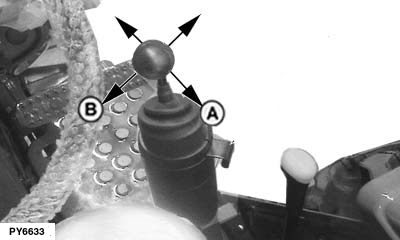

The joystick (if equipped) has two basic directions of movement to control oil flow to the mid-mount couplers, located on the side of the tractor.

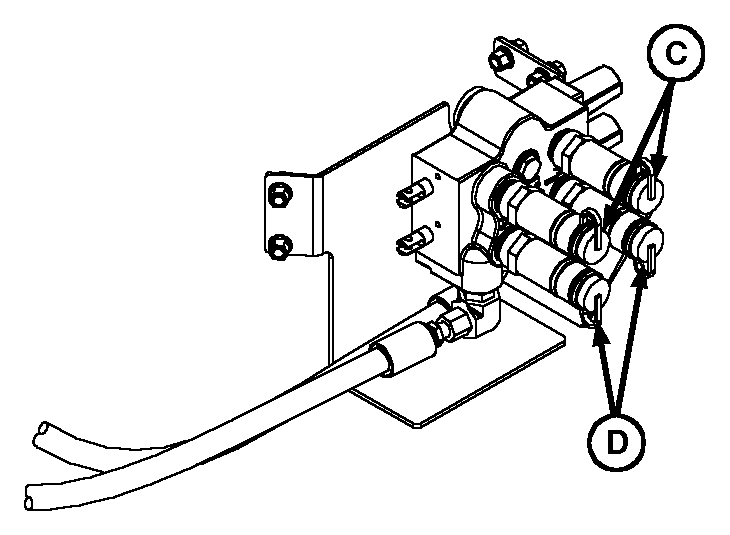

• Forward and backward (A) operates coupler I (C).
• Inward and outward (B) operates coupler II (D).

The joystick detents to a float position when moved fully forward.

The joystick detents to regenerative position when moved fully outward.

A-Forward and Backward-Float
B-Inward and Outward-Regenerative
C-Mid-Mount Coupler I-Float
D-Mid-Mount Coupler II-Regenerative
