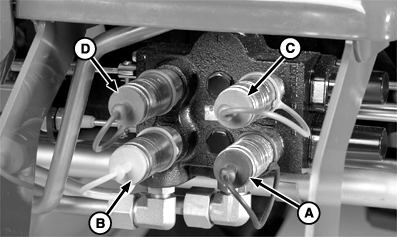

Mid-Mount Valve Coupler Identification


A-Bucket Cylinder-Rod End (Yellow)
B-Bucket Cylinder-Head End (Black)
C-Boom Cylinder-Head End (Blue)
D-Boom Cylinder-Rod End (Red)

LV9676

Two-Function Mid-Mount Valve

SA61034,0000061 -19-22NOV07-1/1
