Extending/Retracting Cylinder-SCV II

Moving lever (A) rearward against spring pressure will extend a cylinder connected to the SCV II coupler receptacles.

Moving lever (A) forward against spring pressure will retract cylinders connected to the couplers II.

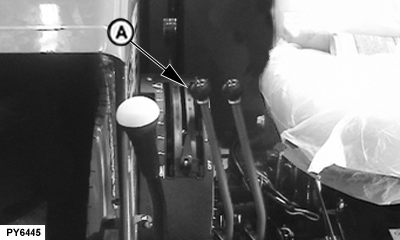

A-SCV II Control Lever

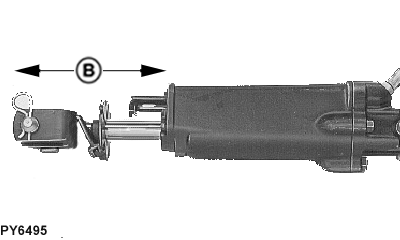

B-Extend and Retract Cylinder
