Operating Tractor PTO

1. Move control lever (A) inward and forward to engage PTO. PTO indicator (B) will light when PTO is engaged.

IMPORTANT: A warning alarm will sound for a few seconds if you leave seat with PTO engaged.

causym CAUTION: Turn key "OFF" to stop engine and make sure all mechanisms have stopped before cleaning out machine or making any adjustments to PTO driven implement.

2. Pull control lever back to disengage PTO.

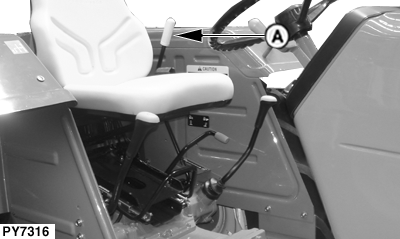

A-PTO Control Lever

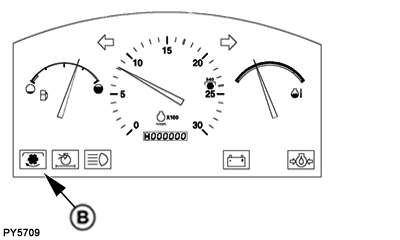

B-PTO Engaged Indicator

PY7316
PY5709

PTO Indicator

SA61034,0000063 -19-22NOV07-1/1
