Check MFWD Axle Oil Level
PY6506

Oil Fill Mark and Filler Plug
PY6540

Oil Level Plug

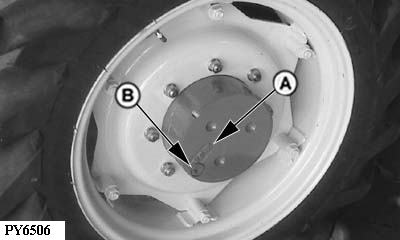

1. Park tractor so that oil fill mark (A) on MFWD hub is level with the ground. Remove filler plug (B). Oil level should be even with bottom of the filler plug hole.

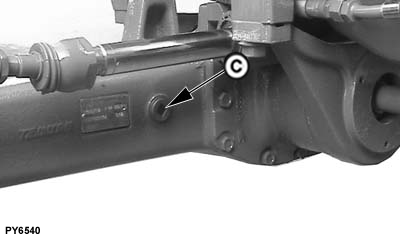

2. Remove plug (C) to check oil level in axle housing. Oil level should be even with bottom of hole.

3. If level is low, add John Deere HY-GARD ® Gear Lubricant or its equivalent. (See Fuels, Lubricants and Coolant section.)


A-MFWD Oil Fill Mark
B-MFWD Oil Fill Plug
C-MFWD Oil Level Plug
D-MFWD Oil Drain Plug

PY6509

Oil Drain Plug
