Attaching Implements to 3-Point Hitch

Fixed Draft Links

1. Be sure drawbar will not interfere. If necessary, move drawbar ahead, or remove it. Check for any other potential interference.

causym CAUTION: Prevent unexpected movement of rockshaft by placing draft sensing lever in the forward or "OFF" position before attaching implement to hitch.

2. Back tractor up to implement (B) so that hitch points align. Engage parking brake and stop the engine Before leaving the tractor seat.

3. Slip draft links over implement hitch pins (C), and retain with quick-lock pins.

NOTE: Locking pins can be stored on draft links (through holes in sway chain ears) when not in use.

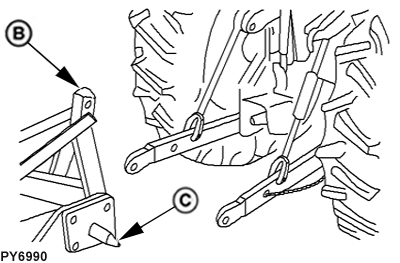

PY6990


B-Implement
C-Implement Hitch Pins

SA61034,000006F -19-23NOV07-1/4

4. To remove center-link from transport hook, lift center link locking clip (A) and rotate tab (B) to rear of center link clip.

5. Attach center link to implement top mast.

6. Adjust center link and lift links as necessary. (See Leveling the Hitch in this section.)

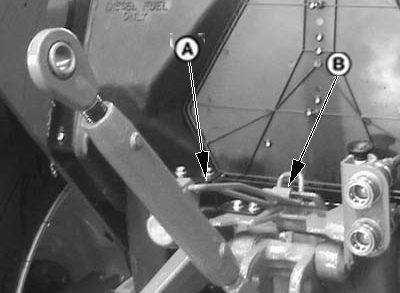

A-Center Link Locking Clip
B-Tab

PY4345

SA61034,000006F -19-23NOV07-2/4

causym CAUTION: To avoid bodily injury or machine damage whenever an implement, implement quick coupler, or other attachment is connected to the tractor 3-Point Hitch, check full range of operation for interference, binding or PTO separation.

7. Using rockshaft position control lever (A), lower and raise implement slowly and check for any point of interference.

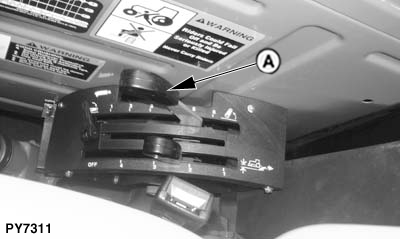

A-Rockshaft Position Control Lever

PY7311

SA61034,000006F -19-23NOV07-3/4

Telescoping Draft Links - If Equipped

1. Position tractor in line with hitch points. Back tractor up close to implement. Place transmission in "PARK" and stop engine.

2. Move button (A) toward center of tractor and pull out draft link end (B). Slip draft link end over implement hitch pin. Retain with quick-lock pin. Repeat on other side.

3. Raise or lower draft arms (C) to align ends (B) with arms, then slowly back up tractor to lock ends in place.

4. Perform steps 4-7 from previous procedure (fixed draft links).


A-Button
B-Draft Link End
C-Draft Arms

LV9643

Link End-Full In

LV9644

Link End-Mid-Point

LV9645

Link End-Full Out

SA61034,000006F -19-23NOV07-4/4
