Replace Air Cleaner Elements

2. Release clips (A).

3. Remove cover (B).

4. Remove primary element (C).

5. Clean out any dirt in canister taking care not to damage the secondary filter element.

IMPORTANT: Remove secondary element (inner element) ONLY if it is to be replaced. DO NOT attempt to clean secondary element.

If secondary element is replaced, install new element immediately to prevent dust from entering air intake system.

6. Removal of the secondary element (D) is similar to removal of the primary element.

NOTE: When installing the air cleaner canister, make sure that the dust unloader valve is facing down.

7. Install secondary element, primary element and cover.

8. Install side screens and close hood.

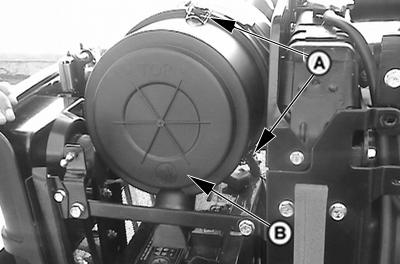

A-Clips
B-Cover

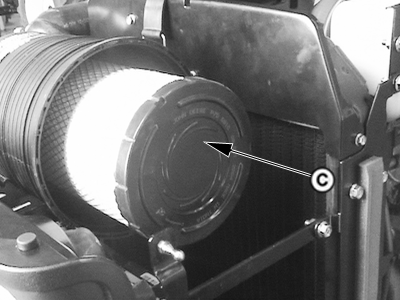

C-Primary Element

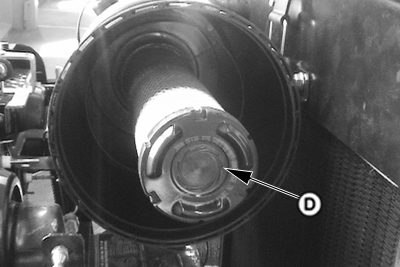

D-Secondary Element

SA61034,0000070 -19-23NOV07-1/1
