Use Headlights

Dual-beam headlights (A) are switched on by either "Low Beam " (2), or "High Beam" (3) light switch positions.

Always dim lights before meeting another vehicle.

Keep headlights adjusted properly, (See Adjust Headlights in Service Section).

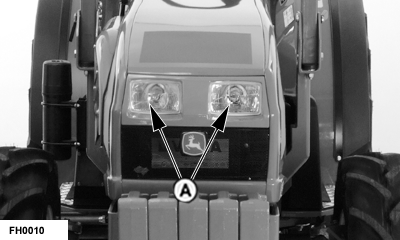

A-Headlights

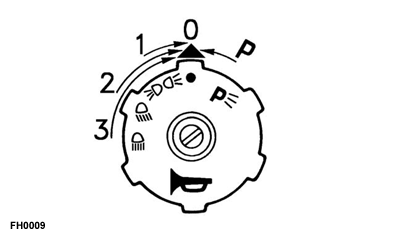

1-Work Lights
2-Dim Headlights, Tail Lights and Warning Lights Position
3-Bright Headlights, Tail Lights and Warning Lights Position
- Turns Off

AH98466,000043C -19-23AUG07-1/1
