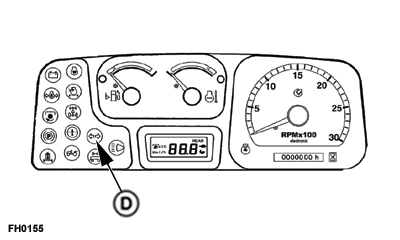

Move turn signal switch (A) left side to indicate left-hand turn or right for right-hand turn. Indicator light (D) will flash to signal turn direction.

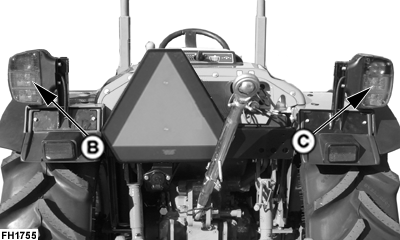

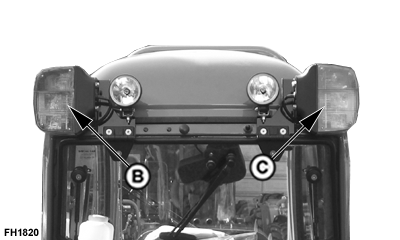

When turn signal switch is right side, front and rear facing lights on right-hand side (C) will flash while left-hand lights (B) glow steady. Left-hand lights flash and right-hand lights glow steady when switch is left side.
NOTE:
Be sure to manually return lever to center position after turning.
A-Turn Signal Switch
B-Left-Hand Turn Light
C-Right-Hand Turn Light
D-Turn Indicator Lights
|
