Stop the Engine

1. Push hand throttle (A) forward to slow idle position. Allow engine to idle for 1 to 2 minutes.

IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

2. Turn key switch to the "OFF" position i.e. "0" position on key switch.

causym CAUTION: Remove key from key switch to prevent operation by untrained personnel.


A-Hand Throttle

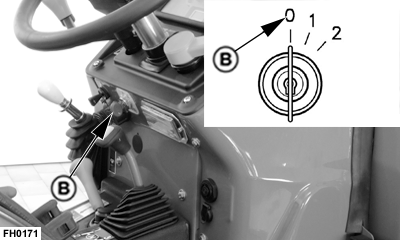

B-Key Switch Off Position

FH0165
FH0171

AH98466,0000443 -19-23AUG07-1/1
