Warm Hydraulic System Oil

Hydraulic system may be slow to function when tractor is started in cold weather. This is because cold oil will not flow easily through the filter screen or hydraulic system filter (A).

Steering will slow until system warms up.

Hydraulic system will function normally when oil warms up.

IMPORTANT: To prevent damaging hydraulic pump or relief valve, DO NOT exceed 2 to 3 minutes warm up time.

1. Depress clutch pedal and put gear shift lever in neutral. Start engine and idle at about 1000 rpm.

2. Turn and hold steering wheel in full left or right turn.

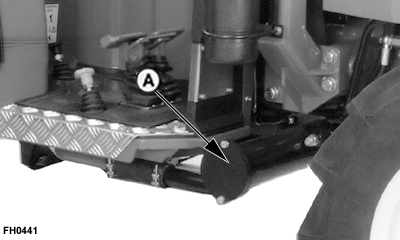

A-Hydraulic Oil Filter

AH98466,000044C -19-17APR08-1/1
