Control Lever and Coupler Identification

Movement of SCV I lever (A) fore and aft operates coupler I receptacles (D).

Movement of SCV II lever (B) fore and aft operates coupler II receptacles (E).

Movement of SCV III lever (C) fore and aft operates coupler III receptacles (F).

Coupler I has a detented float position when lever (A) is moved in the fully forward direction.

Coupler II has a regenerative position when lever (B) is moved in the fully forward direction.

Coupler III has a regenerative position when lever (C) is moved in the fully forward direction.


A-SCV I Lever
B-SCV II Lever
C-SCV III Lever

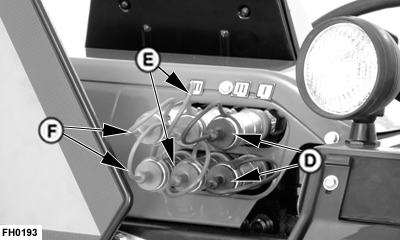

D-SCV I Receptacles
E-SCV II Receptacles
F-SCV III Receptacles

FH0192
FH0193

AH98466,000044D -19-23AUG07-1/1
