Install Rear Cast Iron Weights

causym CAUTION: Optional cast iron weight weighs 33.5 kg (73.9 lb). Handle with care! Use appropriate equipment or have the job done by your John Deere dealer.

1. To install weights on wheel, it is necessary to remove wheel. (See Wheels, Tires and Treads section.)

2. Attach first weight to wheel disks.

3. To install additional weights (A), install bolts in previous weight (B). Rotate the added weight to align bolts with weight holes (C).

4. Tighten attaching bolts securely. Tighten again after a few hours service. Check tightness regularly.

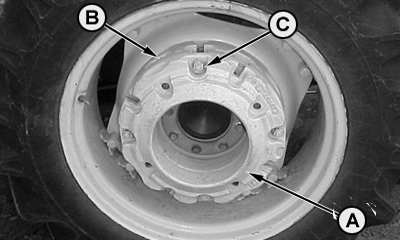

PY1635


A-Additional Weight
B-Weight
C-Weight Holes

AH98466,000045A -19-17APR08-1/1
