Check and Adjust Brake Pedal Free Play

1. Park on level surface. Chock wheels to prevent machine movement.

2. Unlock brake pedals.

3. Check free play (A) of each brake pedal at top of stroke.

4. Brake pedal free play must be to specification.

Specification

Brake Pedal -Free Play 30-35 mm (1.18-1.37 in.)

NOTE: Brake pedal must be adjusted while they are exactly same height.

5. Adjust brake pedal free play by loosening and tightening thee hexagonal stud bolt (B).

6. Tighten bolt to reduce free play and loosen bolt to increase free play.

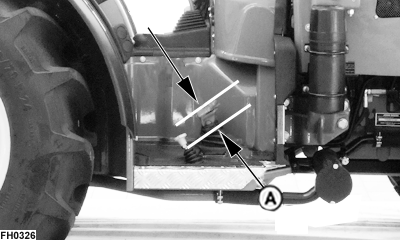

A-Brake Pedal Free Play

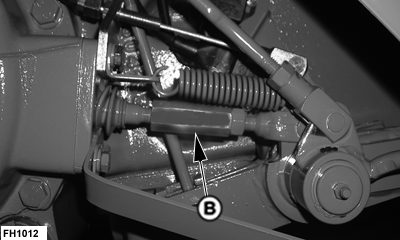

B-Hexagonal Stud Bolt
