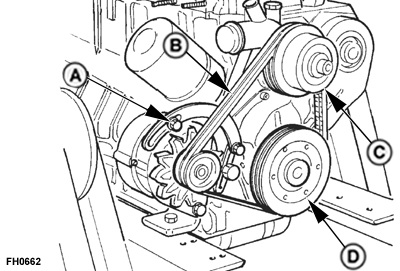

Change Alternator Drive Belt1. Loosen alternator cap screw (A). It will release the pressure of belt (B).2. Remove Belt from water pump pulley (C) and crankshaft pulley (D). 3. Install new belt and check tension by pressing belt midway between pulleys. Belt should reflect about 10 mm at 79 Nm (17.75 lb-ft).
|
|
AH98466,0000490 -19-27AUG07-1/1 |
