Adjusting PTO Clutch Operating Rod

Keep PTO lever at disengage position while adjustment.

Measure free play from center of lever. Free travel of PTO must be 10 mm (0.39 in.).

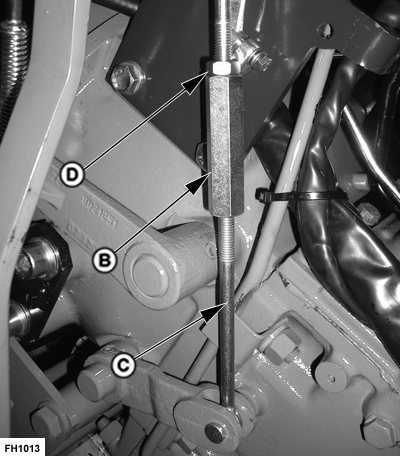

Remove guard. Adjust the PTO lever free play by loosening or tightening the jam nut (D) and install the guard.

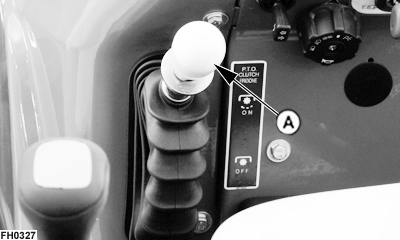

A-PTO Clutch Lever
B-Clevis
C-PTO Operating Rod
D-Jam Nut

AH98466,0000496 -19-29SEP07-1/1
