Use Swinging Drawbar

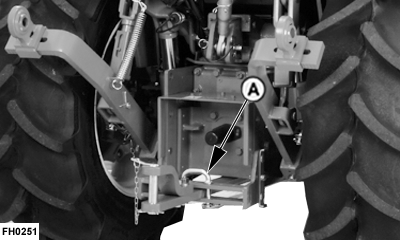

Drawbar retainer yoke (A) can be removed to let drawbar swing free. This is helpful when turning under load.

Drawbar cap screws should be installed and tightened at all other times.

IMPORTANT: Install drawbar cap screws to prevent drawbar from swinging free during transport of towed loads.

A-Drawbar Retainer Yoke

AH98466,00004A5 -19-28AUG07-1/1
