Tighten Bolts-Front Axle

Tighten hardware in the following locations to specification:

Specification

Front Wheel Disk-to-Hub Bolts -Torque 167 N.m (124 lb.ft)

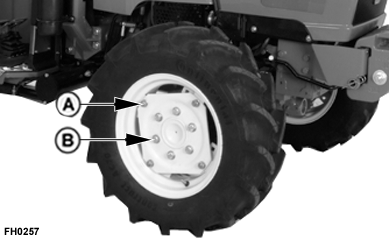

A-Front Wheel Rim-to-Disk Nuts
B-Front Wheel Disk-to-Hub Bolts

FH0257

AH98466,00004A7 -19-28AUG07-1/1
