Tighten Bolts-Rear Axle

Tighten bolts in the following locations to specifications:

Specification

Rear Axle Disk-to-Flange -Torque 245 N·m (180 lb-ft)

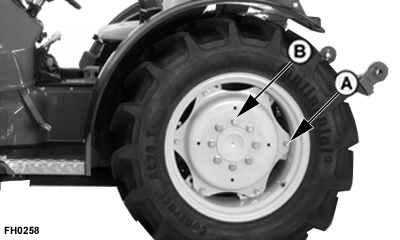

A-Rim-To-Disk Bolts
B-Disk-To-Flange Bolts

FH0258

AH98466,00004A8 -19-28AUG07-1/1
