Tractor Storage

IMPORTANT: Any time tractor will not be used for several months, use this procedure to minimize corrosion and deterioration.

1. If coolant has been in tractor for two years, flush cooling system (B). (See Flushing Cooling System in Service section.) Add 50 percent antifreeze water mixture. Test coolant for adequate cold weather protection.

2. Change engine oil and filter (D). (See Change Engine Oil and Filter in Service-250 Hours section.)

3. Drain fuel and add back 4 L (1 gal) of fuel. Then add 0.4 (13 oz) L of corrosion inhibitor.


A-Coolant Recovery Tank
B-Cooling System

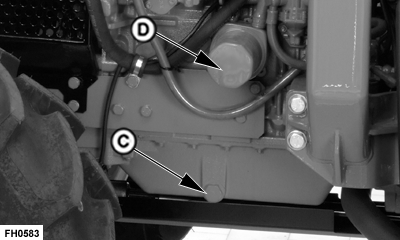

C-Engine Oil Drain Plug
D-Engine Oil Filter

FH1228

Air Cleaner

FH0583

Engine Oil and Filter

AH98466,00004BA -19-29AUG07-1/5

4. Add 0.25 L (9 oz) of corrosion inhibitor to transmission-hydraulic system fill port (E).

5. Depress clutch and start engine. Run engine until it reaches operating temperature. Also raise and lower rockshaft several times. Shut off engine.

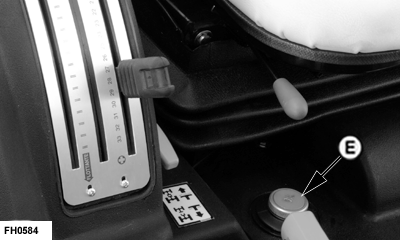

E-Transmission-Hydraulic System Fill Port

FH0584

Hydraulic Fill Port

AH98466,00004BA -19-29AUG07-2/5

6. Add 0.5 L (16 oz) more inhibitor to fuel tank at filler cap (A).

7. Add 0.5 L (16 oz) inhibitor to engine oil at filler (B).

8. Disconnect fuel shut-off solenoid wiring lead (D). This will prevent engine from starting while cranking.

9. Remove air intake hose at manifold. Pour 0.1 L (3 oz) inhibitor into manifold and replace hose. Pull hand throttle back to slow idle position. Crank engine only a few revolutions.

10. Loosen alternator/fan belt after they have cooled.

11. Remove and clean battery. Store in a cool, dry place. Keep it charged. 1

12. Tie or block clutch pedal in the disengaged position.

13. Coat exposed bare (no paint) metal surfaces with grease or a corrosion inhibitor.


A-Fuel Tank Filler Cap
B-Engine Oil Filler

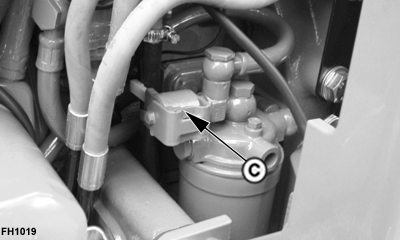

C-Fuel Shut-off Solenoid Wiring Lead

FH0329

Fuel Tank

FH1001

Engine Oil Fill

FH1019

Fuel Injection Pump

1Disconnect battery ground cable for short-term storage periods (20 to 90 days).

AH98466,00004BA -19-29AUG07-3/5

14. Use tape to seal engine oil filler cap (C), exhaust pipe, fuel caps, and transmission-hydraulic system filler cap (D).

15. Cover dash with opaque material to prevent gauges from fading.

16. Raise tires off ground. Protect them from heat and sunlight.

17. Thoroughly clean tractor. Touch up any painted surfaces that are scratched or chipped.

18. If tractor must be stored outside, cover it with a waterproof material.

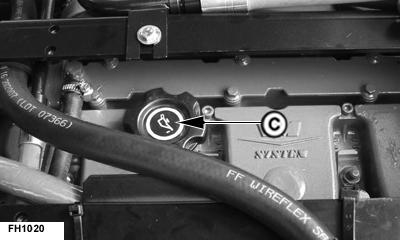

C-Engine Oil Filler Cap
D-Hydraulic Oil Filler Port

FH1020

Engine Oil Fill

FH0684

Hydraulic Fill Port

AH98466,00004BA -19-29AUG07-4/5

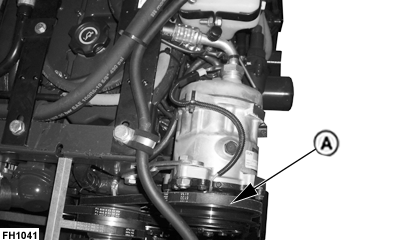

19. Cab: Rotate A/C compressor pulley (A) several turns once a month to prevent seizure of compressor.


A-A/C Compressor Pulley

FH1041

AH98466,00004BA -19-29AUG07-5/5
