Optimizing A/C and Heater Performance
FH1731
FH1735

To heat or cool your body more efficiently, aim individual vents, on each side of headliner, to different parts of your body.

  • Aim front vents (A) toward your head.
  • Aim rear vents (B) toward your back.

    NOTE: For maximum cooling effect, turn temperature control knob (C) to full counterclockwise position.

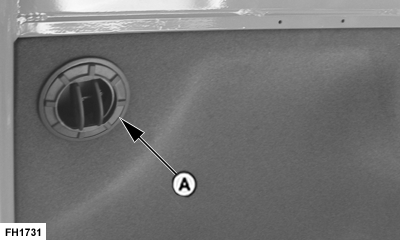

A-Front Vent

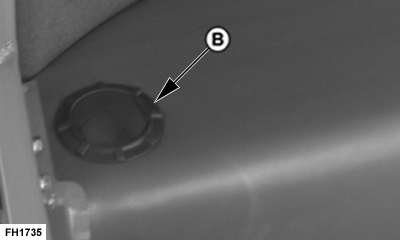

B-Rear Vent

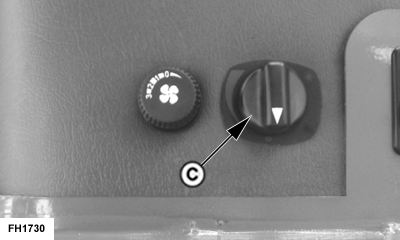

C-Temperature Control Knob

FH1730

NR25796,0000F1C -19-22APR08-1/1
