Servicing Air Conditioner (Cab)

causym CAUTION: Refrigerant under pressure. Improper servicing may cause refrigerant to penetrate eyes and skin or cause burns.

IMPORTANT: R134a refrigerant must be used. This requires special equipment and procedures. See your John Deere dealer.

NOTE: Some oil seepage from compressor shaft seal, on the lower front, is normal.

Check the following if air conditioner will not cool, or if cooling is intermittent:

1. If air conditioner clutch slips after tractor has been in storage, compressor may be stuck.

a. Stop engine and turn ignition switch to STOP (off) position.

b. Raise hood and rotate clutch hub back and forth to free compressor.

X9811

NR25796,0000F2E -19-18APR08-1/2

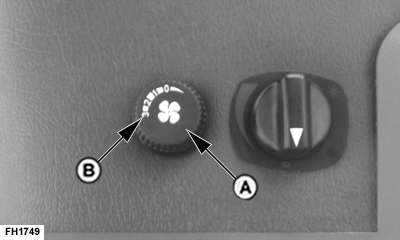

2. Run engine at 2000 rpm. Set blower control knob (A) to HIGH position (B). If cooling is intermittent, clean front grille, radiator and condenser. (See procedure in this section.) If problem is not solved, see your John Deere dealer.

3. Inspect operator enclosure (cab) filters for restriction. Clean filters. (See procedure in this section.) If problem persists, see your John Deere dealer to have evaporator core cleaned.


A-Blower Control Knob
B-High Position

FH1749

NR25796,0000F2E -19-18APR08-2/2
